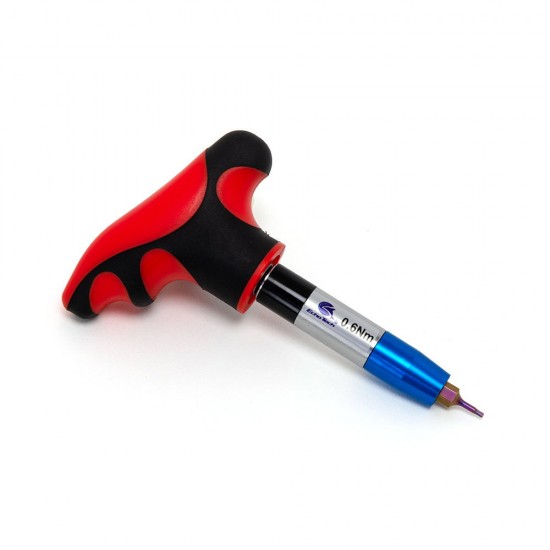

Echo Tech ZH25T2 Torque Driver for ZO Series Ultrasonic Cutters

Insufficient Tightening of the Blade Fixing Screw is the Most Common Cause of Problems

Insufficient tightening of this small screw can cause malfunctions and interrupt operation.

If the Blade Fixing Screw is not properly tightened, the Blade Anchor may wear out faster, dirt may accumulate inside the horn, and errors may occur.

This may result in:

Poor transmission of ultrasonic vibration, resulting in reduced cutting performance.

Increased current to the ultrasonic transducer, causing faster overheating.

Faster deterioration of the ultrasonic transducer, potentially requiring replacement and repair.

Faster wear of the Blade Anchor, requiring more frequent replacement.

For reliable and long lasting operation, regularly check and retighten the Blade Fixing Screw and perform routine maintenance.

The ZH25T2 Torque Driver allows the Blade Fixing Screw to be tightened easily and consistently to the correct torque, regardless of the operator.

Compatible Models

All ZO Series ultrasonic cutters
USW-334 Series
Overseas models ZO-91 / ZO-95

How to Use

Turn the Torque Driver until you hear a click. This indicates that the correct tightening torque has been reached.

The ZH25T2 helps prevent overtightening and damage to the screw head while ensuring the correct torque.

Specifications

Product Code: ZH25T2
Product Name: Torque Driver
Application: ZO Series and USW Series ultrasonic cutters
Correct Torque: 0.6Nm
JAN: 4571117584036
Handle Made in Taiwan

Blades, Blade Anchors and Blade Fixing Screws are consumable parts and should be replaced regularly.

The SB01 Maintenance Set is recommended for cleaning the inside of the horn.

Please Note:

If the screw head has already been damaged while using the supplied RR02 Hex Wrench, do not attempt to remove it yourself. Please request professional repair service.
