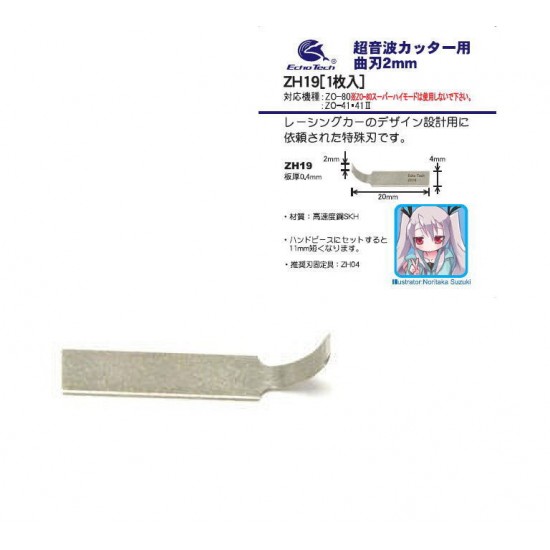

Echo Tech ZH19 2mm Curving Blade for ZO-41II / ZO-80II Ultrasonic Cutters

Popular Curved Replacement Blade for Various Applications

This blade features a curved R5 tip and is available in four blade widths from 1mm to 4mm.

Ideal for working on weld lines and curved surfaces.

Also highly effective for removing burrs, cutting close to surfaces and scraping away material.

A versatile replacement blade ideal for model building and various precision applications.

Uses the standard ZH04 Blade Anchor.

ZH03 is compatible with all ZO Series models.

Made from a more durable material than the standard blade supplied with the ultrasonic cutter for longer service life.

Popular Models

No. 1 ZH03
No. 2 ZH18
No. 3 ZH19
No. 4 ZH20

Why These Blades Are Popular

The curved design allows the blade to reach areas that conventional blades cannot easily access. It is particularly useful for scraping resin cast parts, removing burrs close to plastic model surfaces and performing detailed cutting and shaping work.

The blades can also be used creatively for applications such as creating damage effects, heat bonding by pressing onto materials and melt cutting. Their versatility makes them useful for a wide range of modelling techniques.

Specifications

ZH03
Blade Width: 4mm
Compatible Models: ZO Series
Quantity: 1 blade
Size: 20 x 4 x 0.4mm, R5

ZH18
Blade Width: 1mm
Compatible Models: ZO-41II / ZO-80II in Normal Mode or High Mode only
Size: 20 x 1 x 0.4mm, R5

ZH19
Blade Width: 2mm
Size: 20 x 2 x 0.4mm, R5

ZH20
Blade Width: 3mm
Size: 20 x 3 x 0.4mm, R5

Material: SKH High Speed Steel, offering greater heat resistance than the standard blade supplied with the ultrasonic cutter.

Blade Anchor: ZH04

Please Note:
When installed in the handpiece, the effective blade length is reduced by 11mm.

These blades place additional stress on the ZH04 Blade Anchor, which is a consumable part. Regular replacement is recommended.
